TRU-MINING 6 TPU Hose

TRU-MINING 6 is designed to be a flexible and lightweight hose for compressed air. It adapts to the terrain, making it possible to easily operate in difficult areas. For your convenience, the hose has been designed to be easy to coil for storage and transportation. TRU-MINING 7 in rubber and TRU-MINING 6 HP in thermoplastic polyurethane (TPU). TRU-MINING 6 HP is a popular hose due to its lightweight, flexibility and high-pressure rating. TRU-MINING 6 HP is preferred for high burst pressure and abrasion demanding applications, while TRU-MINING 7 is preferred where flexibility and low weight is desirable.

    TRU-MINING 6 HP

·Note: Minimum safety factor burst to maximum working pressure is 4:1 for compressed air.

TRU-MINING 6  HP Extra

·Note: Minimum safety factor burst to maximum working pressure is 4:1 for compressed air.

Product Specifications

Primary Uses & Applications

· Compressed air for power tools and compressors

· Borehole drilling

Color Options

· Orange (standard)

Lengths and Diameters

    We offer a range of diameters and lengths for this hose, depending on the version. The diameters range from 51mm to 75mm, and for some diameters, the hose can be delivered in lengths up to 40m.

Operating Temperature

    The hose has been developed to perform in different weather and environments, with an operating temperature from -50°C to + 110°C
(-58°F to +230°F).

Primary Uses & Applications

• Compressed air for power tools and compressors.

• Borehole drilling.

Features

• Light, yet rugged and hard-wearing hose.

• Low weight combined with a high-pressure rating.

• Excellent puncture resistance.

• The hose does not stretch when pulled and has a very highpressure rating versus wall thickness.

• Field proven design with long track record.

• Dual reinforcement ensures safety against failure.

• Operating temperature up to +110°C (+230°F).

• Lengths up to 40 meters.

• Color options: Orange (standard).

• Different coupling options available.

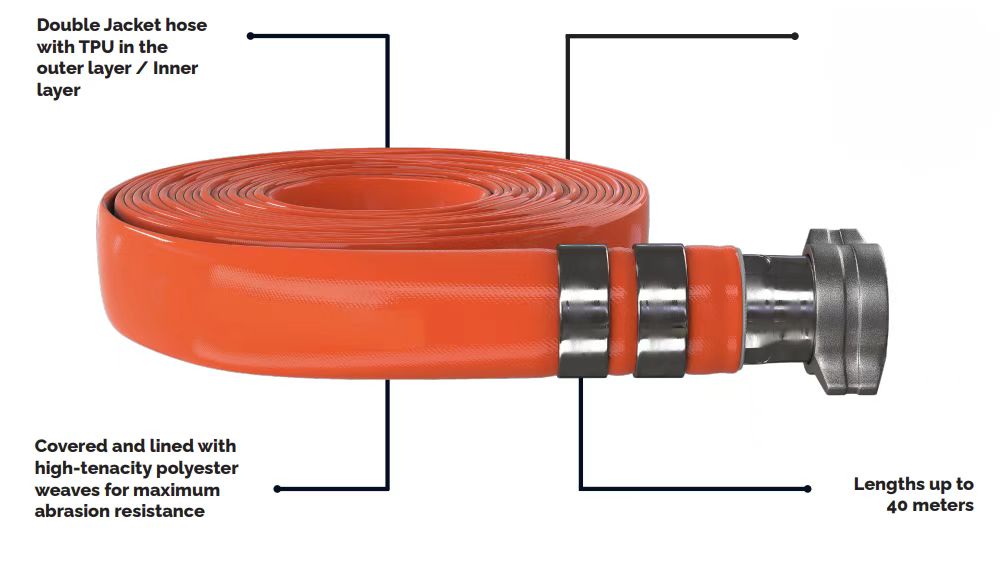

Construction

• Double high tensile polyester jacket hose solution.

• High tensile polyester weaves covered with an abrasion resistant TPU and lined with an oil resistant TPU.
